Description

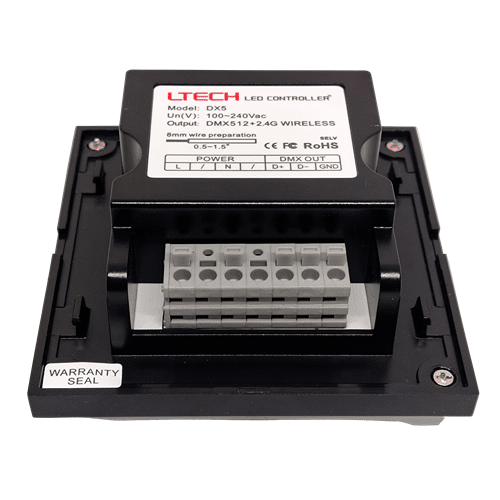

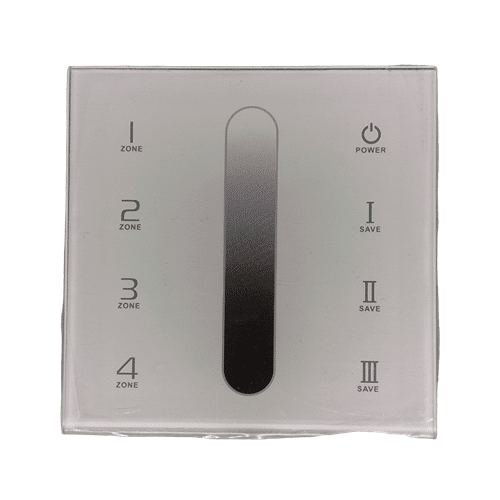

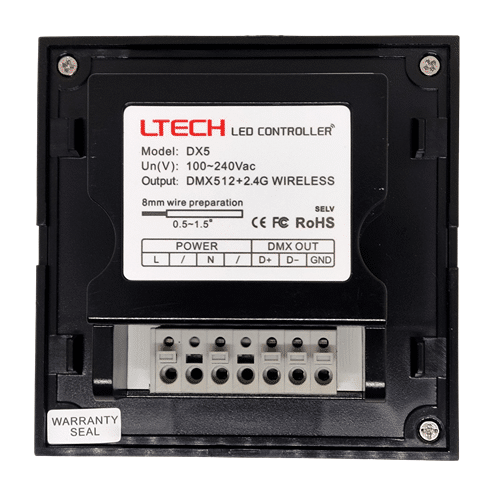

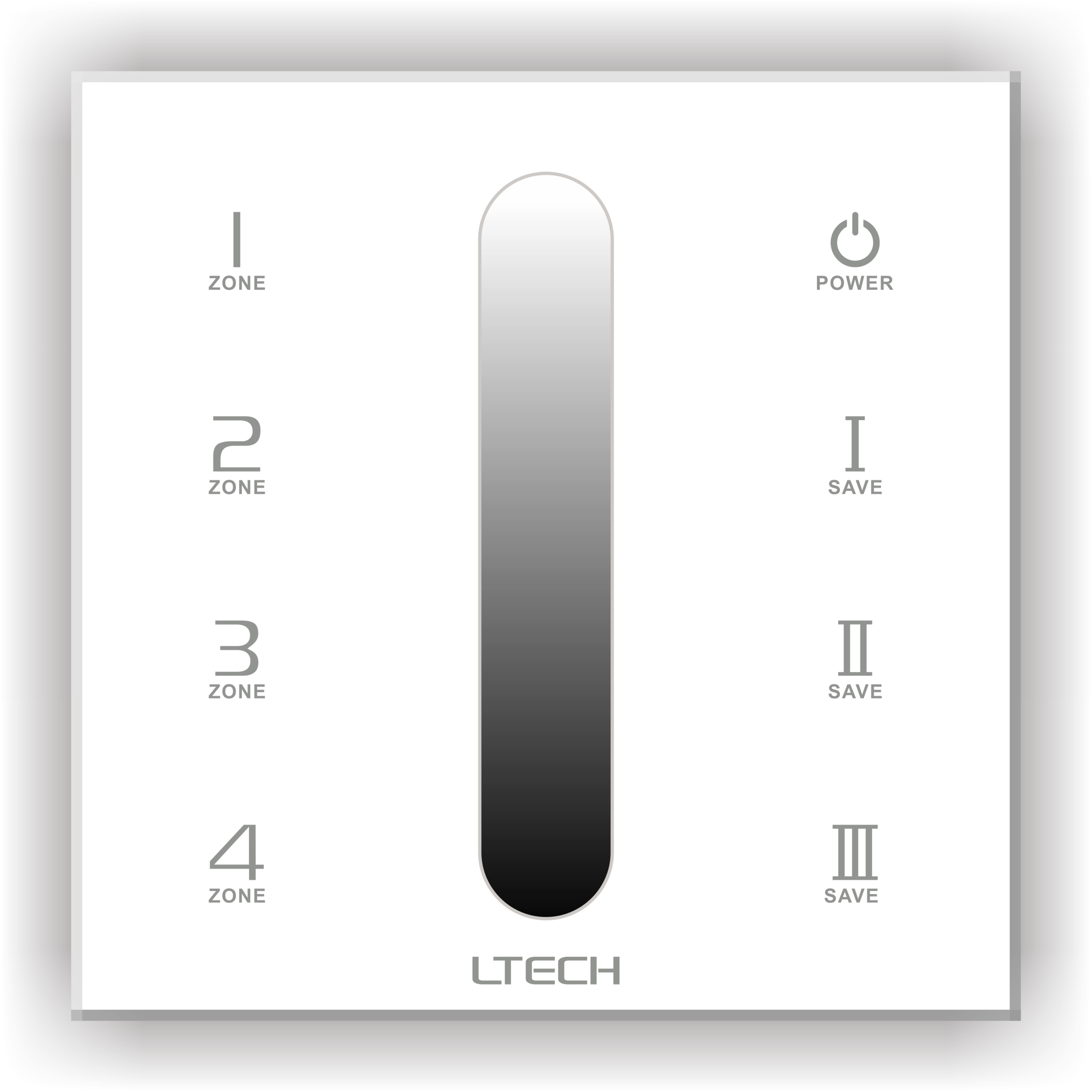

DX5 intensity-adjustable LED touch wall controller – DMX512 & RF 2.4 GHz – 4 zones

Product description

The DX5 wall controller is a high-end LED lighting control panel designed to provide easy, intuitive and professional control of monochrome LED strips or other DMX512-compatible installations. Featuring a tempered glass touch panel and an enhanced visual and sound interface, it lets you adjust the light intensity of 4 independent zones, while supporting 2.4 GHz wireless control as well as standard DMX512 output.

This controller is ideal for residential, commercial or architectural environments where multiple, precise light control is required, combining modern aesthetics with advanced technology.

Key features

🎛️ High-precision touch control – high-end capacitive interface
📶 DMX512 + RF 2.4 GHz output (wireless control to compatible receivers)
🔲 4 independent control zones to manage multiple spaces or moods
✨ Elegant, easy-to-clean tempered glass panel
🎵 LED indicator and audible feedback on touch
⚙️ T-PWM technology for smooth, even dimming

Technical specifications

• Model: DX5

• Input voltage: AC 100-240 V (mains supply)

• Output signal : RF 2.4 GHz + DMX512

• Control modes: 4 independent zones

• Operating temperature : -20 °C to 60 °C

• Dimensions : L86 × W86 × H36 mm

• Package dimensions : L112 × W112 × H48 mm

• Net weight : ≈ 225 g

Benefits

✔ Multi-zone control to manage several lighting sections separately
✔ Easy-to-use intuitive touch interface
✔ DMX512 compatible for professional lighting systems
✔ 2.4 GHz RF wireless control to avoid wiring problems
✔ Modern design with LED backlighting

Applications

✔ Residential room lighting
✔ Commercial or architectural lighting
✔ Monochrome LED strip control
✔ Small to medium-sized DMX lighting systems
